R2R Sputter Film Service maker for Flexible Electronics ,Thin film deposition Manufacturer

  Description:

Topnano specializes in custom nano-grade metal coating films using the Roll-to-Roll (R2R) sputtering process, offering OEM thin-film deposition services tailored to each customer’s requirements.

The R2R sputtering process enables large-area thin film deposition on flexible substrates such as PET film, PI film, or metal foils, widely used in flexible electronic devices, EMI shielding films, sensors, and thin-film capacitors.

Compared with traditional evaporation methods, sputtered films provide superior adhesion, surface uniformity, and corrosion resistance, ensuring excellent performance and long-term reliability.

In addition, the quality of sputtered thin films is superior to evaporation technology in some aspects, such as adhesion and corrosion resistance.

Key Features:

• Ultra-thin metal coating thickness: nanometer scale (up to 150 nm)

• Copper coating available for single-sided thickness up to 18 µm

• Compatible with various substrate materials (PET, PI, stainless steel, etc.)

• Ideal for flexible circuit, composite metal thermal film, and shielding film applications

According to the type of material, we can provide two kinds of Sputtering service.

 1.Metallized polymer substrate

The metal/alloy is deposited on the polymer substrate (e.g. PI Film /PET Film) from metal target.

Examples of products: 2L-FCCL, ITO transparent conductive film.

 (*Copper plating can supply up to 18um single side)

 2.Composite metal foil

Metal foil (e.g. Cu Foil) is used as a substrate and other metals/alloys are sputtered on top to make electronic materials.

Product example: Copper foil sputtered Graphite Thermal film.

 Customer Product Development & Mass Production Cases:

Topnano provides custom roll-to-roll sputtering and nano metal coating solutions for international clients across various industries.
Our OEM projects demonstrate our expertise in functional thin film materials, conductive coatings, and advanced metal foil technologies.

Key Case Highlights:

1. Thermoelectric Materials Development (Japan) – Assisted a Japanese company in developing high-performance thermoelectric thin film materials to enhance energy conversion efficiency.

2. Next-Generation Conductive Film (Japan) – Supported the development of innovative conductive film materials with improved electrical conductivity and surface uniformity.

3. Copper-Plated PET Film for LED Transparent Displays (China) – Achieved mass production of PET film with copper sputtered layers, enabling high-transparency conductive films for LED display applications.

4. Composite Metal Foil Functional Materials (Israel) – Collaborated with an Israeli client to create multi-layer composite metal foils with enhanced thermal and electromagnetic properties.

5. Functional Material Development (Taiwan) – Partnered with Taiwanese manufacturers to develop new functional coatings for flexible electronics and EMI shielding applications.

6. Metal Layer Uniformity Enhancement – Improved metal layer uniformity and adhesion in customers’ conductive materials through advanced Roll-to-Roll sputtering process optimization.

• Our roll-to-roll vacuum sputtering process and chemical copper plating process can produce a series of metal-coated thin films.
• The vacuum sputtering process used to produce these metal-clad thin films offers several advantages, including excellent uniformity of the metal layer, high productivity, strong adhesion, and enhanced hardness.
• Our regular used metal targets include: Cu, NiCr, NiCu, NiCuTi, C, Si targets.
•  If you have other metal sputtering needs,welcome to contact us for discussion. For new project purpose, we can purchase metal targets by needs.

 Comparison of common conductive sputtering coatings

When selecting roll-to-roll sputtering conductive film, R&D personnel will evaluate the differences between aluminum (Al), copper (Cu),and graphite based on product requirements, cost, conductivity, transparency, adhesion, durability, etc.

The following is a comparison of various coating materials:

 Product application:
*Electromagnetic shielding film (EMI Shielding Films)
*Transparent conductive films
*Flexible metal type Thermal films
*2Layer FCCL
*Flexible Electrode Materials

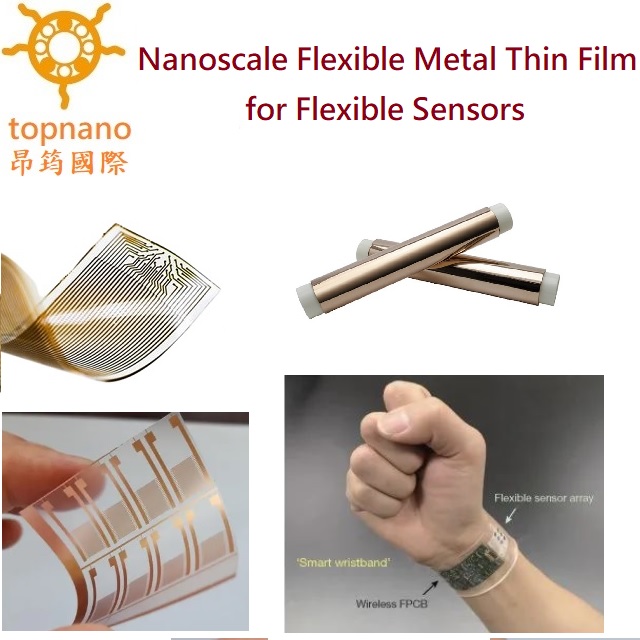

*Flexible sensors
